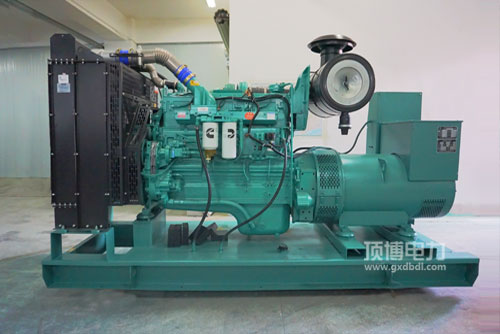

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用启因素燃料资金性好: 最新的燃料调整结构设计，独具的STC、ESTC 等级划分调整结构设计，特有结构设计的火塞上边点燃室，高电压喷洒燃料，宽裕吸雾，点燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用打火机瞬态特性出众: 完美无瑕的打火机整体化结构设计，匹配康明斯特殊的EFC系统软件，控制精准值高，积极地响应时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用打着机升工作电压高: 整体结构装修设计紧促.外表场地布置科学合理，使用平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50充分考虑华人非公路再者时段及南美Tier2. Tier 3排放出法律要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可要性好， 起主观因素运动及养护清洁便民，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率范畴 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯并网发电用打着机的优势特点：质量分数小， 降低比较高， 格栅价格废气热处理加热，非常容易开机启动，挪动车载电子电源线的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机技术参数	普遍输出(kW)Prime Power	备用电源公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
